詳細
Wi-Fi 6基地台，具有雙頻2×2 MIMO，可進行小尺寸安裝。

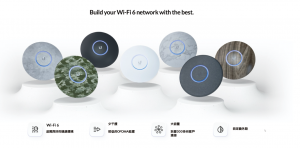

UniFi 6 Lite是2×2 Wi-Fi 6接入點，可通過5 GHz（MU-MIMO和OFDMA）和2.4 GHz（MIMO）無線電提供高達1.5 Gbps的綜合無線電速率。將UniFi 6 Lite水平安裝在天花板上以覆蓋高密度環境，或將其垂直安裝在牆上以擴展其範圍。UniFi 6 Lite具有緊湊的納米尺寸設計，因此可以使用nanoHD蓋和安裝附件。
特徵：
-

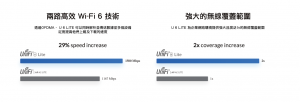

- 2×2高效Wi-Fi 6

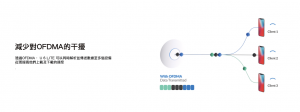

- 5 GHz頻段2×2 MU-MIMO和OFDMA，無線速率為1.2 Gbps
- 2.4 GHz頻段2×2 MIMO，無線電速率為300 Mbps
- 千兆以太網，採用802.3af PoE供電（不包括PoE注入器）
- 與UAP-nanoHD蓋子和嵌入式安裝支架兼容
| MECHANICAL | |
|---|---|
| Dimensions | Ø160 x 32.65 mm (Ø6.3 x 1.3″) |
| Weight | Without Mount: 300 g (10.6 oz) With Mount: 315 g (11.1 oz) |
| Enclosure Characteristics | Polycarbonate 110 and ADC12 Die Casting |
| Mounting Characteristics | Polycarbonate, SGCC Steel |
| HARDWARE | |
| Processor Specs | 880 MHz MIPS 1004 KEc |
| Memory Information | 256 MB |
| Management Interface | Ethernet In-Band |
| Networking Interface | (1) 10/100/1000 Mbps Ethernet RJ45 |
| Buttons | Factory Reset |
| LEDs | White/Blue |
| Power Method | 802.3af PoE, Passive PoE (48V) |
| Power Supply | 802.3af PoE; 48V, 0.32A PoE Adapter (Not Included) |
| Supported Voltage Range | 44 to 57VDC |
| Max. Power Consumption | 12W |
| Max. TX Power 2.4GHz 5GHz |
23 dBm 23 dBm |
| MIMO 2.4GHz 5GHz |
2 x 2 2 x 2 |
| Throughput Speeds 2.4GHz 5GHz |
300 Mbps 1201 Mbps |
| Antenna Gain 2.4GHz 5GHz |
2.8 dBi 3 dBi |
| Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Operating Humidity | 5 – 95% Noncondensing |
| Certifications | CE, FCC, IC |
| SOFTWARE | |
| Wi-Fi Standards | 802.11a/b/g Wi-Fi 4/Wi-Fi 5/Wi-Fi 6 |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*)*Supported With Upcoming Controller Versions |
| BSSID | 8 per Radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Trafc Isolation | Supported |
| Concurrent Clients | 300+ |
| SUPPORTED DATA RATES (MBPS) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (Wi-Fi 4) | 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11ac (Wi-Fi 5) | 6.5 Mbps to 866.7 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80) |
| 802.11ax (Wi-Fi 6) | 6.3 Mbps to 1.2 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80) |
